Generator Speed Control and actuator

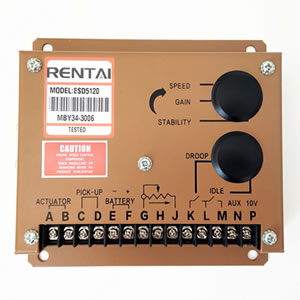

Speed control unit esd5120

Supply: 12 or 24V DC Battery Systems
Actuator Current Range: Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal: 0.5~120 V RMS
Operating Ambient Temperature Range: -40°C ~ 85°C
Relative Humidity: up to 95%
Speed Range: 1K-7.5K Hz continuous
Speed Trim Range: ± 200Hz
Gross Weight: 0.6KG
PACKAGE SIZE: 180mm*175mm*55mm
