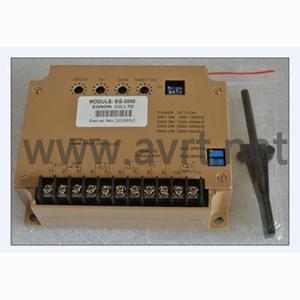

Speed control unit EG2000

                           Speed control unit   EG2000
Operating Voltage 12 or 24 VDC ±20%
Output Current 0.5 ~ 15 A
Run Speed Adjustment range Speed adjustment Potentiometer (30 turn); 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz.
Idle Speed Adjustment Range Run Speed 30 ~ 85%
Ramp Time 3 ~ 20 Sec
Remote Speed Pot Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5K potentiometer ±5% adjustment range.
Temp. Stability <0.01%
Run Speed Stability ± 0.25 % at steady state
MPU input signal 1 ~ 120VAC RMS
Droop 4%
Adjustment Run Speed, Idle Speed, Ramp Time, Droop, Integration, Gain
Mechanical Vibration 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz
Relative Humidity < 95%
Operating Temperature -40 ~ 85°C
Storage Temperature -40 ~ 85°C
Dimensions 147mm L * 114mm W * 50mm H
Weight 690g ± 2%
