Deep Sea Controller

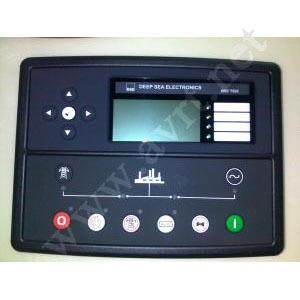

Deep sea controller DSE7520

 ITEM:  DEEP SEA CONTROLLER DSE7520
 BRAND  DEEP SEA
 Country of original:  U.K
 Unit weight:  1 KG
 Desc

KEY LOAD SHARE FEATURES
• No-break return
• Peak shaving/peak lopping
• kW on mains (utility) level
• Mains (utility) decoupling test mode
• Manual speed/frequency adjust
• ROCOF & vector shift
• Dead bus sensing
• Direct governor & AVR control
• Volts & frequency matching
• kW and kV Ar load sha

 KEY FEATURES

• Compatible with CAN and magnetic pick-up
• RS232 or RS485 remote communications
• Modbus RTU
• PIN protected front panel editing
• Exercise engine scheduler
• Back-lit LCD 4-line text display
• Multiple language options
• Voltage measurement
• 9 Configurable inputs
• 5 Configurable outputs
• Automatic start/Manual start
• Audible alarm
• LED indicators
• Built-in governor and AVR control for easy operation and panel engineering
• Event log (25)
• Fault condition notification to a designated PC
• PC configuration
• Mains (utility) failure detection
• Configurable alarms and start/stop timers
• Automatic load transfer with no-break return
• SMS alert messaging (GSM modem required)
• Remote control and monitoring
• Dedicated load test button
• kW overload protection
• Engine temperature protection
• MV-LV synchronising



KEY BENEFITS
• Sends SMS messages to engineers to notify specific engine problems (GSM Modem and SIM card required)
• On-site and remote module configuration (Modem required)
• In-built engine diagnostics removes the requirement for service equipment
• Full engine protection & instrumentation without the need for additional senders (Electronic engines only)
• Remote monitoring of the module using comprehensive DSE7500 PC software
• License-free PC software
