Deep Sea Controller

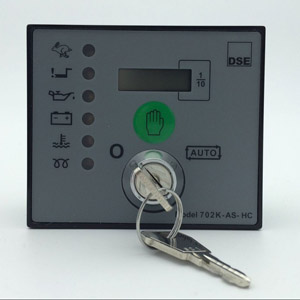

Deep sea controller DSE702

 ITEM:  DEEP SEA CONTROLLER
 MODEL:  DSE702AS( AUTO)
 Power Supply:  8 to 35 Vdc Continuous
 Cranking Dropouts  Able to survive voltage dips during cranking. Without
 the need for internal batteries
 Alternator Input Range  15 - 305 V AC RMS (+20%).
 Alternator Input Frequency:  50 - 60 Hz at rated engine speed. (Minimum 75V AC)
 Overspeed:  nominal frequency +14% (+24% Overshoot)
 Start Output:  Solid State 1.2A negative grounding terminal
 Run Output:  Solid State 1.2A negative grounding terminal
 Pre-heat Output:  Solid State1.2A negative grounding terminal
 Operating Temperature Range:  -30 to +70°C
